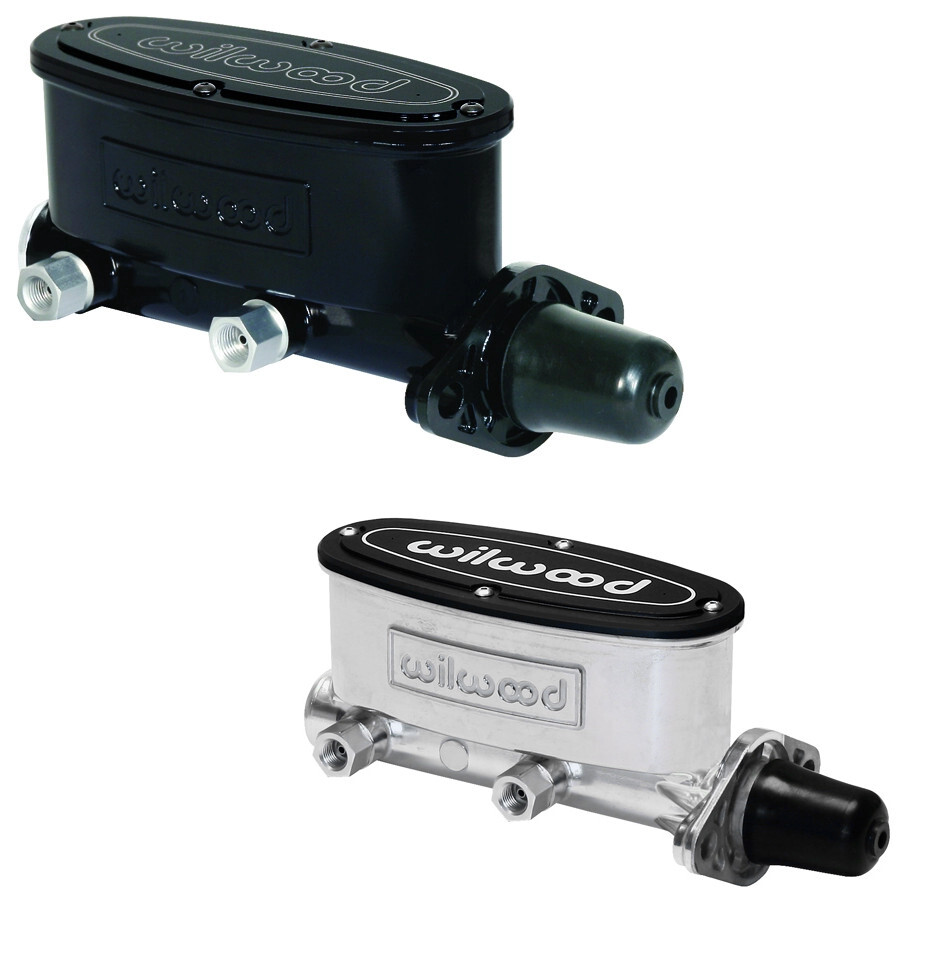

Wilwood Master Cylinder (For Use with a Brake Booster) [Bore: 1 1/8"]
SKU: wwmcyl118
BEFORE Purchasing YOU WILL need to Measure to ensure that the Master Cylinder WILL fit between your Booster and Shock Tower

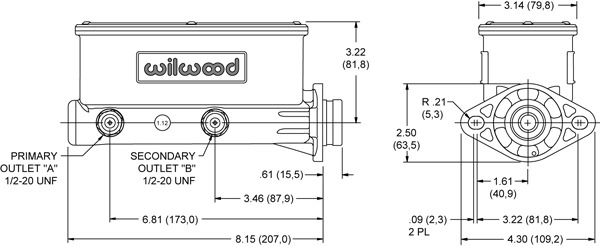

This Master Cylinder is Approx 210mm Long (Refer to Images for Exact Measurements)
This Master Cylinder Will NOT Just Bolt to the Firewall
If Running a Remote Booster then it WILL Fix to the Firewall with the Booster Relocated
In Most Applications if You are NOT using a Vacuum Booster for the Brakes this Wilwood Master Cylinder WILL Require Adaption to the Firewall
Wilwood Master Cylinders REQUIRE Larger Diameter Brake Line Fittings, these can be Bought from ANY Brake or Hydraulic Specialist
Refer to Brochure for Installation Instruction and the Video Below for the Bleeding Process
This Master Cylinder MAY NOT Fit on Below Cars
| Ford Mustangs |
| Ford Falcons |
| Holden WB |
| Holden Commodore |
This Master Cylinder WILL Bolt Straight on to a Factory Firewall Booster
| LH, LX & UC Holden Toranas |
| HK, HT, HG, HQ, HJ, HX & HZ Holdens |
BEFORE Purchasing YOU WILL need to Measure to ensure that the Master Cylinder WILL fit between your Booster and Shock Tower
This Master Cylinder is Approx 210mm Long (Refer to Images for Exact Measurements)
This Master Cylinder Will NOT Just Bolt to the Firewall
If Running a Remote Booster then it WILL Fix to the Firewall with the Booster Relocated
In Most Applications if You are NOT using a Vacuum Booster for the Brakes this Wilwood Master Cylinder WILL Require Adaption to the Firewall
Wilwood Master Cylinders REQUIRE Larger Diameter Brake Line Fittings, these can be Bought from ANY Brake or Hydraulic Specialist
Refer to Brochure for Installation Instruction and the Video Below for the Bleeding Process
This Master Cylinder MAY NOT Fit on Below Cars
| Ford Mustangs |
| Ford Falcons |
| Holden WB |
| Holden Commodore |
This Master Cylinder WILL Bolt Straight on to a Factory Firewall Booster
| LH, LX & UC Holden Toranas |
| HK, HT, HG, HQ, HJ, HX & HZ Holdens |
BEFORE Purchasing YOU WILL need to Measure to ensure that the Master Cylinder WILL fit between your Booster and Shock Tower
This Master Cylinder is Approx 210mm Long (Refer to Images for Exact Measurements)
This Master Cylinder Will NOT Just Bolt to the Firewall
If Running a Remote Booster then it WILL Fix to the Firewall with the Booster Relocated
In Most Applications if You are NOT using a Vacuum Booster for the Brakes this Wilwood Master Cylinder WILL Require Adaption to the Firewall
Wilwood Master Cylinders REQUIRE Larger Diameter Brake Line Fittings, these can be Bought from ANY Brake or Hydraulic Specialist
Refer to Brochure for Installation Instruction and the Video Below for the Bleeding Process
This Master Cylinder MAY NOT Fit on Below Cars
| Ford Mustangs |
| Ford Falcons |
| Holden WB |
| Holden Commodore |
This Master Cylinder WILL Bolt Straight on to a Factory Firewall Booster
| LH, LX & UC Holden Toranas |
| HK, HT, HG, HQ, HJ, HX & HZ Holdens |
| SKU | wwmcyl118 |
| Brand | Wilwood |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.130m |
| Shipping Length | 0.260m |
