Adaptor Plate Kit [Engine: Chev Small Block; Gearbox Bellhousing: GM T700 V6]
SKU: ap052bkitsbct700v6
Kit Specifications
- We Recommend using a VN or VP V6 T700 as this Does Not have Computer Control
- Check if the Transmission has a Hydraulic / Manual Valve Body, this is Important as some of the Later Model Transmissions have an Electronic Valve Body which May Cause Problems to Set Up Properly
- For the Small Block Chev the Standard Flexplate is Used (Not Supplied)

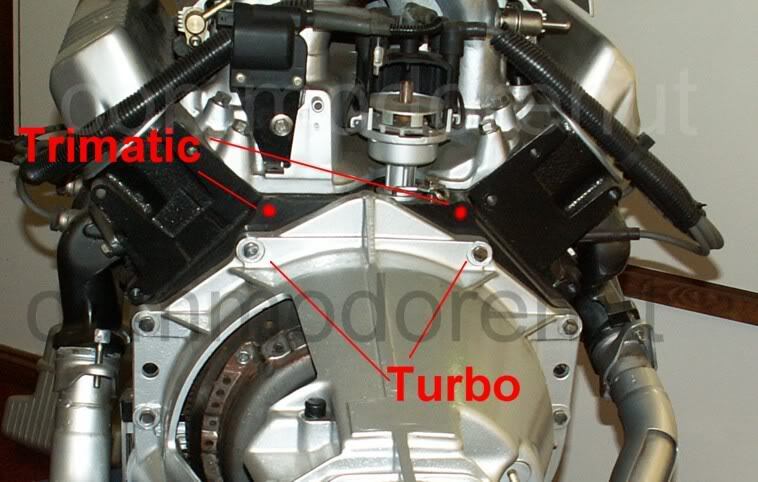

- Suitable for Turbo Bolt Pattern Engine Blocks ONLY, Refer to Images on How to Check
Kit Includes
| Part | Part # | Qty |
|---|---|---|

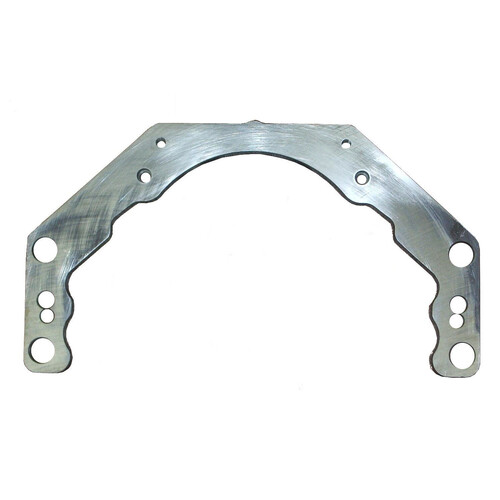

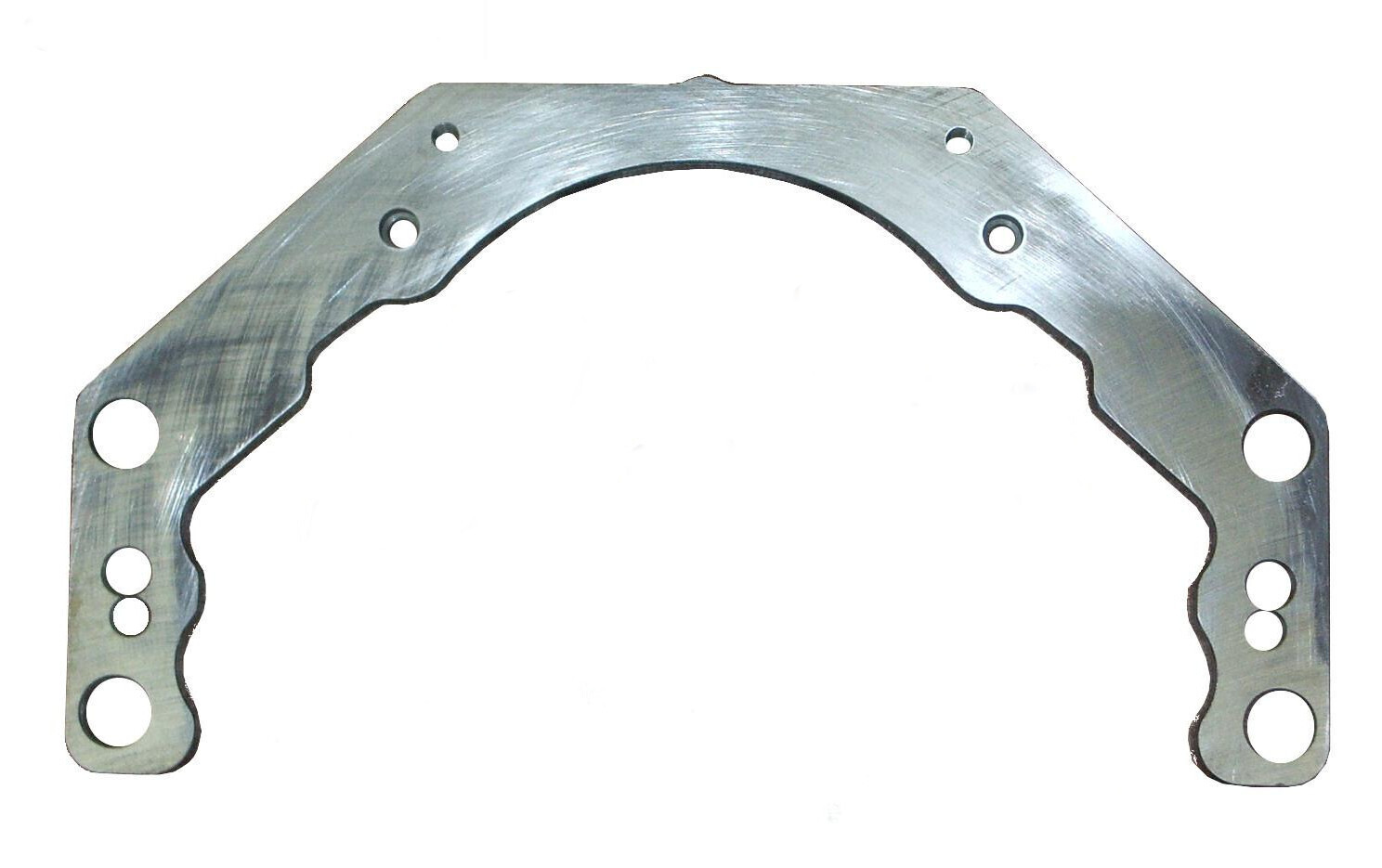

| Adaptor Plate | ap052a | 1 |
| Bolt Kit | ap052-bolt-kit | 1 |
| Dowel | dowel07 | 2 |
| Torque Converter Locator | tclocator04 | 1 |
| Torque Converter Spacer | tcspacer04 | 1 |
Images are for Illustrative Purposes Only and May Not give a True Indication of the Product
Kit Specifications
- We Recommend using a VN or VP V6 T700 as this Does Not have Computer Control
- Check if the Transmission has a Hydraulic / Manual Valve Body, this is Important as some of the Later Model Transmissions have an Electronic Valve Body which May Cause Problems to Set Up Properly
- For the Small Block Chev the Standard Flexplate is Used (Not Supplied)
- Suitable for Turbo Bolt Pattern Engine Blocks ONLY, Refer to Images on How to Check
Kit Includes
| Part | Part # | Qty |
|---|---|---|
| Adaptor Plate | ap052a | 1 |
| Bolt Kit | ap052-bolt-kit | 1 |
| Dowel | dowel07 | 2 |
| Torque Converter Locator | tclocator04 | 1 |
| Torque Converter Spacer | tcspacer04 | 1 |
Images are for Illustrative Purposes Only and May Not give a True Indication of the Product
Kit Specifications
- We Recommend using a VN or VP V6 T700 as this Does Not have Computer Control
- Check if the Transmission has a Hydraulic / Manual Valve Body, this is Important as some of the Later Model Transmissions have an Electronic Valve Body which May Cause Problems to Set Up Properly
- For the Small Block Chev the Standard Flexplate is Used (Not Supplied)
- Suitable for Turbo Bolt Pattern Engine Blocks ONLY, Refer to Images on How to Check
Kit Includes
| Part | Part # | Qty |
|---|---|---|
| Adaptor Plate | ap052a | 1 |
| Bolt Kit | ap052-bolt-kit | 1 |
| Dowel | dowel07 | 2 |
| Torque Converter Locator | tclocator04 | 1 |
| Torque Converter Spacer | tcspacer04 | 1 |
Images are for Illustrative Purposes Only and May Not give a True Indication of the Product
| SKU | ap052bkitsbct700v6 |
| Brand | Castlemaine Rod Shop |
| Shipping Weight | 15.0000kg |
| Shipping Width | 0.520m |
| Shipping Height | 0.170m |
| Shipping Length | 0.520m |
